Scaling ENERGIX: Adopting Hexagonal Architecture for Long-term Maintainability

In modern software development, our architectural choices often dictate the lifespan of our projects. With the ENERGIX project, we reached a turning point where managing complex business logic within a growing codebase necessitated a cleaner separation of concerns.

The Problem: Tight Coupling and Hidden Dependencies

Initially, our application layers were tightly intertwined. Business logic was scattered alongside infrastructure concerns like database queries and API calls. This made unit testing difficult and introduced regressions every time we updated our data access patterns. It felt like trying to reorganize a room where every piece of furniture was bolted to the walls.

Moving to Hexagonal Architecture

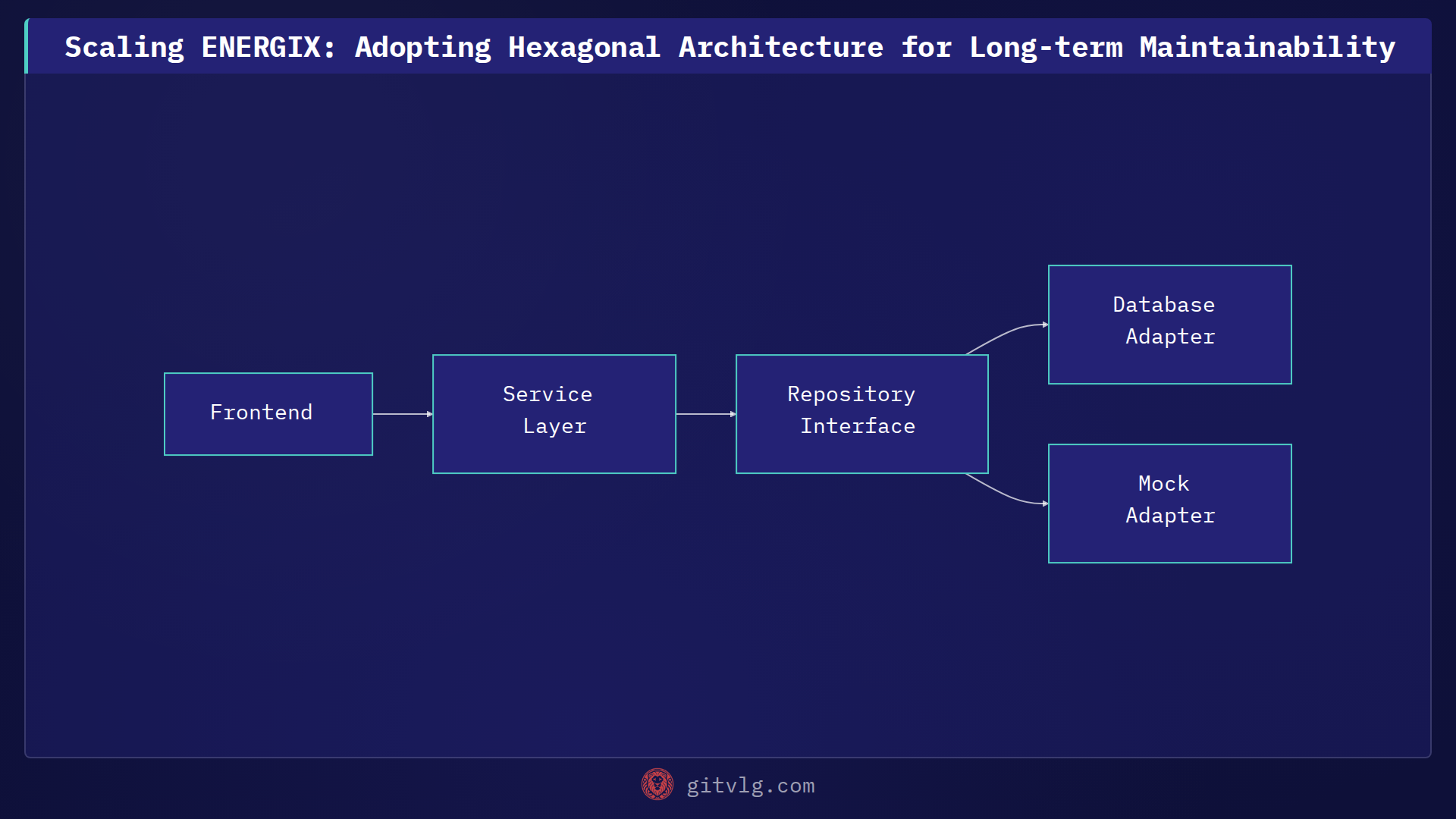

We decided to shift toward a Hexagonal Architecture, often called the Ports and Adapters pattern. By isolating the core domain logic from external concerns—like our MongoDB database or our frontend API calls—we gained the ability to swap infrastructure components without touching the business rules.

Core Implementation Strategy

We implemented the Repository Pattern to abstract the data layer. Whether using TypeScript in our React/Next.js frontend or Java in our backend services, the core logic interacts only with an interface, not the concrete implementation.

// Example: Repository Interface
interface DataRepository {
  findById(id: string): Promise<DataModel | null>;
  save(data: DataModel): Promise<void>;
}

This decoupling allows our business services to remain agnostic of the database provider, ensuring that changes in our persistence layer don't ripple outward into the UI or application service layers.

The Benefits of Decoupling

By adopting this approach, we saw immediate improvements:

• Testability: We can now mock the repository to test business logic in isolation using tools like Cypress.
• Flexibility: Switching from one database driver to another now only requires implementing a new adapter, leaving the service layer untouched.
• Scalability: As ENERGIX grows, we can add new features without breaking existing modules, as the domain remains protected behind stable interfaces.

Actionable Takeaway

If you find your codebase becoming brittle, stop adding features and start defining boundaries. Identify your external dependencies—databases, external APIs, and even UI state managers like Zustand—and wrap them in interfaces. Start by isolating one domain module and observe how much easier it becomes to write and maintain your tests.
